HUNGSANG-ION-PCM4046-S5A15-MKT

Battery Matched: Li-Ion 14.8V 21700 Battery Applications: Sweeper/Fishing Auto-Roller

No.

 Descriptions of Key Performance

Data

1

Voltage

Charging Voltage max.

DC: 16.8V CC/CV

Charger Voltage Recommended

20V

2

Current

Constant Charging Current max.

10A

Constant Discharging Current max.

18A

Current consumption for single cell

≤15μA

Balanced Current on Charing

N/A

3

Over-Charge
(cell)

Over charge detection voltage

4.25V

Over charge detection delay time

1.0S

Over charge release voltage

4.10±0.05V

4

Over-Discharge
(cell)

Over-Discharge Reaction Voltage

2.8±0.1V

Over-Discharge Reaction Delay

150 mS

Over-Discharge Voltage to be released

3.0±0.05V

5

Over-Current

Over-Current Detected Voltage

150±30mV

Over-Current Detected Current

50A

Reaction Delay

12±0.5ms

Release condition

Load Removed

6

Short-Circuit

Detection condition

External short circuit

Detection delay time

500us

Release condition

Load Removed

7

Resistance

Protection  circuitry (B- TO P-)

≤25mΩ

8

Temperature

Operating Temperature Range

-40 to +70℃

Storage Temperature Range

-40 to +90℃

9

Weight

Gross Weight

15g

10

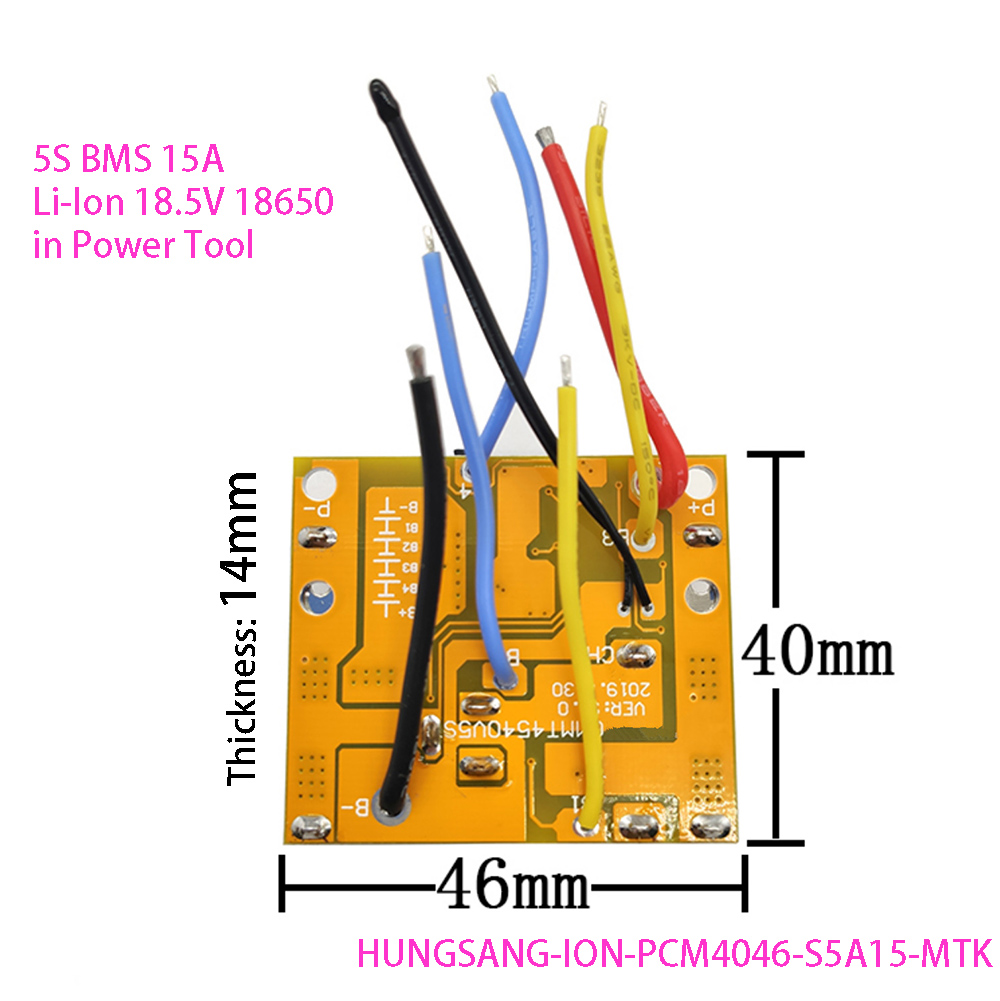

Dimension

Diameter X Thickness (mm)

40x41x3mm

11

Applications

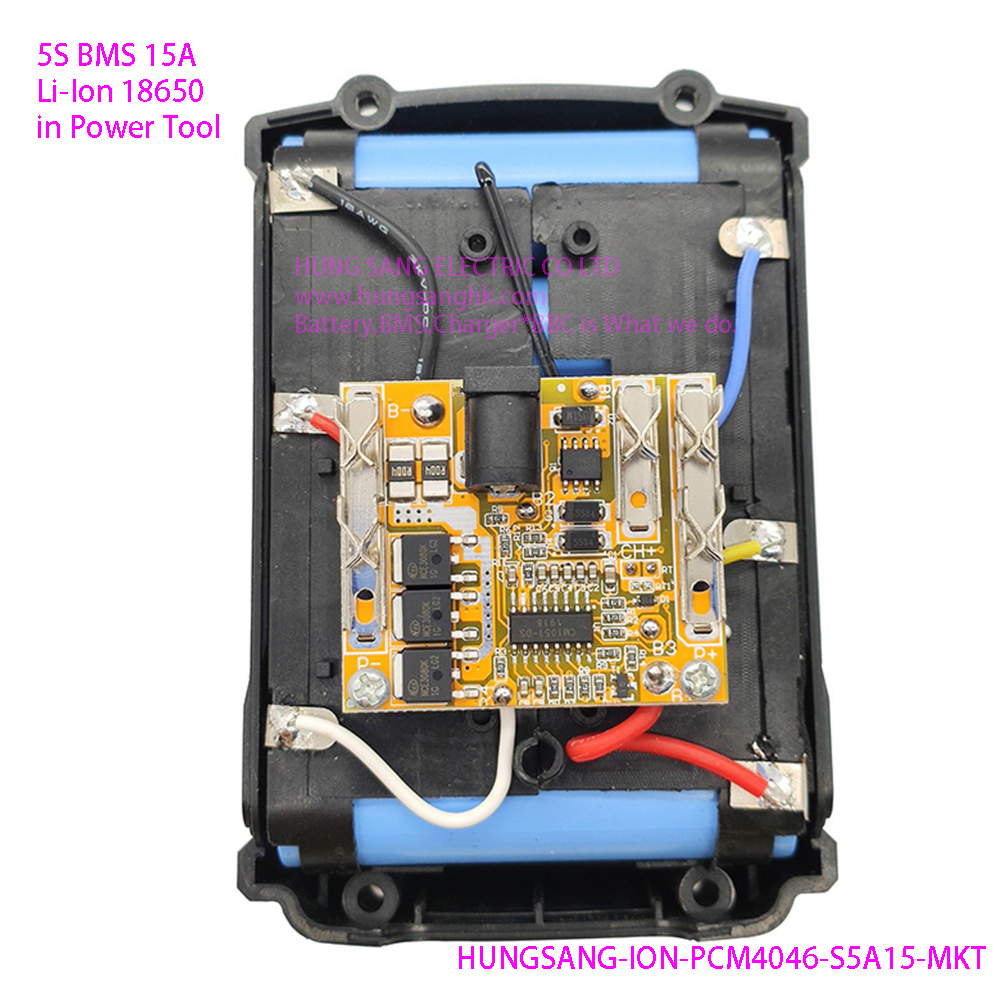

Electric Power Tool, washing car sprayer, drill, spanner, angle grinder

12

Remarks:

Nickel strips/Connector/Heat-Shrink Sleeve available on request
