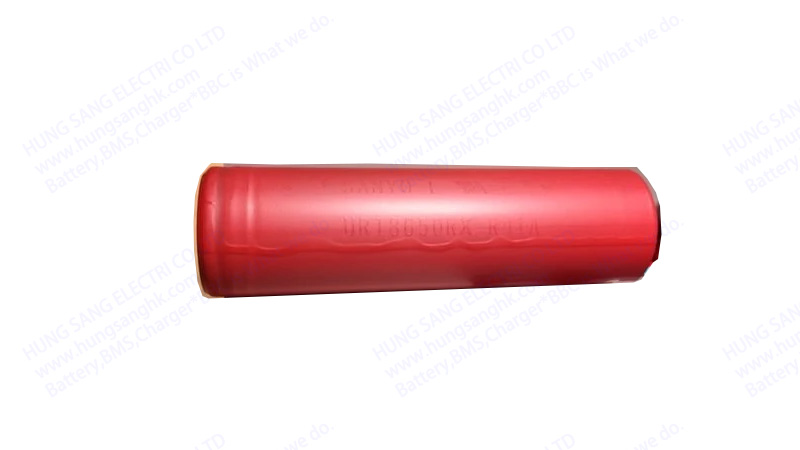

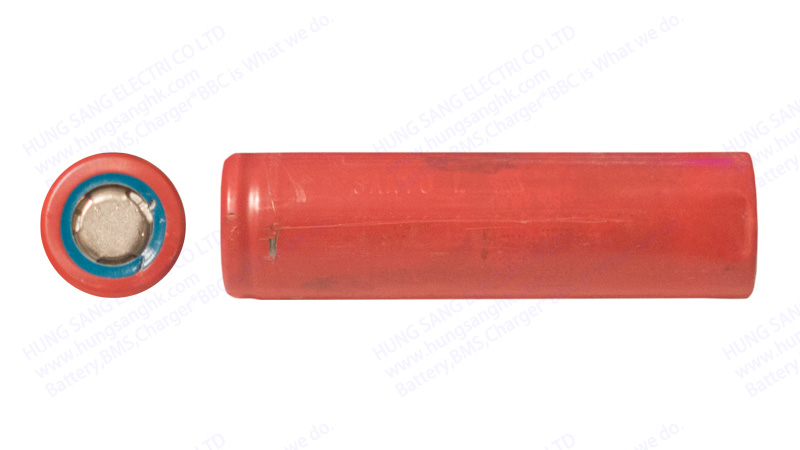

Lithium Ion 18650 Battery Panasonic UR18650RX 3.6V 2Ah 7.2WH in Fishing Light

Application

Lithium Ion rechargeable 18650 battery Panasonic UR18650RX 3.6V 2Ah 7.2WH wildly used in Power Tool Remote Control Plane Vacuum Cleaner Fan Fishing Light Bluetooth speaker LED Light Beauty Instrument Water Mini-pumper Pet medical instruments Bicycle Pedicab Electric Cart,Electric Cigarette,torch
Simple Parameters

P/N: ION-PS18650RX--S1P1-7.2WH

Applications: Fishing Light; Torch         Type: Li-Ion   MFR: Panasonic Industrial

No.

 Descriptions of Parameter

Data

1

Voltage Rated

DC 3.6V

2

Peak Voltage on charging

4.2V

3

Bottom Voltage on discharging

2.5V

4

Capacity Rated min.

1950Ah

5

Power Rated min.

9Wh

6

Constant Discharge Current max.

5A *2C5;

7

Constant Charge Current max.

1.2A *0.5C5

8

Top Shape

Flate

9

Dimensions:(Diameter * Height)

D.18.5mm; H.65.1mm

10

Weight

46.2g

11

Resistance

70mΩ

12

Packing

200cells per carton; G.W.9.8KG per carton.

Remarks:

C5:  IEC standards define the discharge rate of battery, whose capacity shall be discharged fully in 5 hours.  1C5 equal to same capacity usually; 10C5 means the discharge rate is 10 times than standard rate. 25C5 is the highest rate for 18650

Best Matching Charger Recommended

Best Matching BMS Recommended

ION 1S 3.7V Battery Model List
