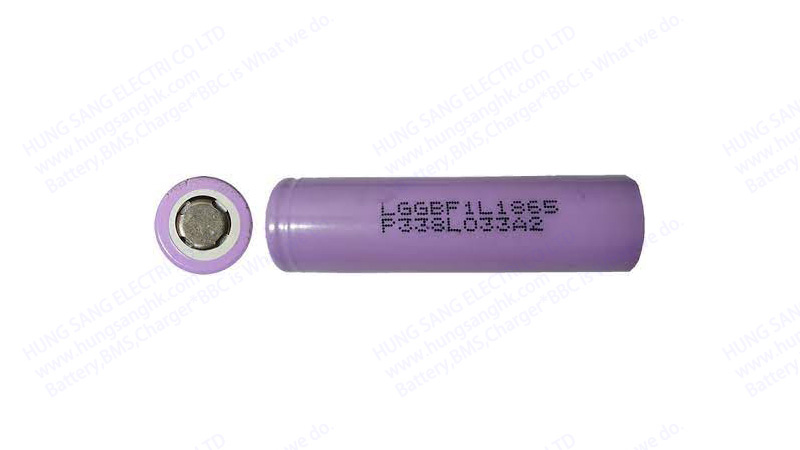

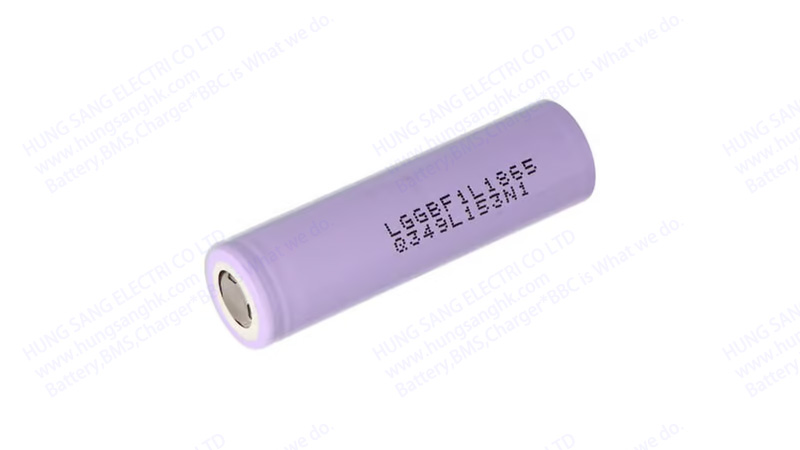

P/N: ION-LG1865-GBF1L-S1P1-12.16WH

Applications: Power Tool; E.V.           Type: Li-Ion      MFR: LG  Chemical

No.

 Descriptions of Parameter

Data

1

Voltage Rated

DC 3.63V

2

Peak Voltage on charging

4.2V

3

Bottom Voltage on discharging

2.5V

4

Capacity Rated

3350Ah

5

Power Rated

12.16Wh

6

Constant Discharge Current max.

4.88A *1.5C5;

7

Constant Charge Current max.

1.6A *0.5C5

8

Top Shape

Flate

9

Dimensions:(Diameter * Height)

D.18.5mm; H.65mm

10

Weight

49g

11

Resistance

70mΩ

12

Packing

200cells per carton; G.W.9.8KG per carton.

Remarks:

C5:  IEC standards define the discharge rate of battery, whose capacity shall be discharged fully in 5 hours.  1C5 equal to same capacity data; 10C5 means the discharge rate is 10 times than standard rate. 25C5 is the highest rate for 18650.
