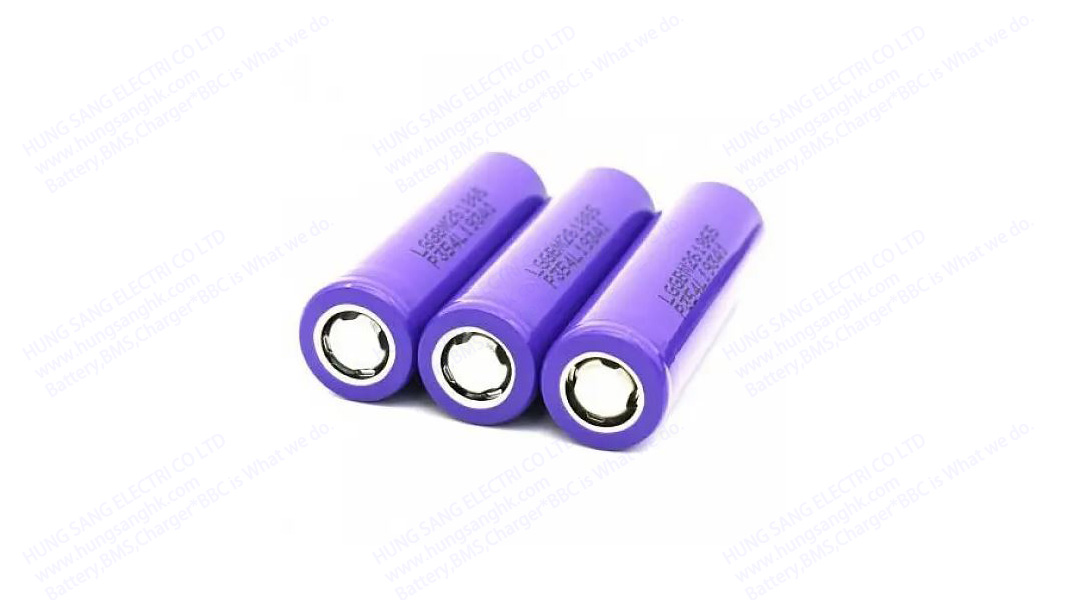

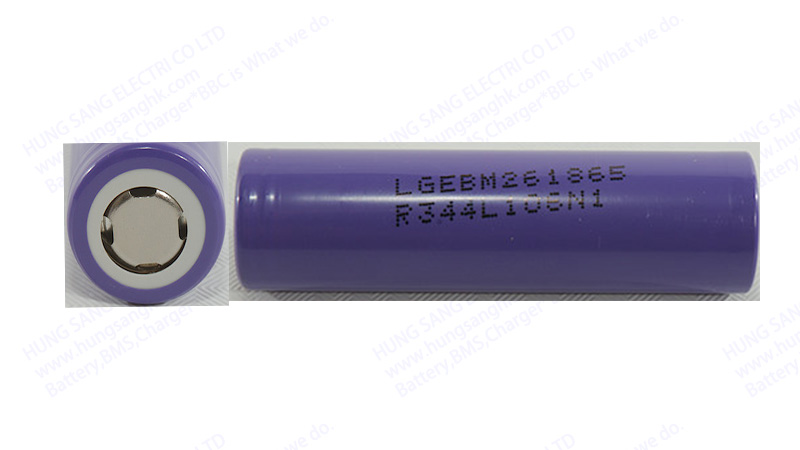

P/N: ION-LG1865-EBM26-S1P1-9.6WH

Applications: Power Tools; E.V.    Type: Li-Ion; High Power     MFR: LG Chemical

No.

 Descriptions of Parameter

Data

1

Voltage Rated

DC 3.7V

2

Peak Voltage on charging

4.2V

3

Bottom Voltage on discharging

2.5V

4

Capacity Rated

2600Ah

5

Power Rated

9.6Wh

6

Constant Discharge Current max.

10A *4C5;

7

Constant Charge Current max.

2.5A *1C5

8

Top Shape

Flate

9

Dimensions:(Diameter * Height)

D.18mm; H.65mm

10

Weight

44g

11

Resistance

20mΩ

12

Packing

200cells per carton; G.W.9.8KG per carton.

• Remarks:
• C5:  IEC standards define the discharge rate of battery, whose capacity shall be discharged fully in 5 hours.  1C5 equal to same capacity usually; 10C5 means the discharge rate is 10 times than standard rate. 25C5 is the highest rate for 18650
