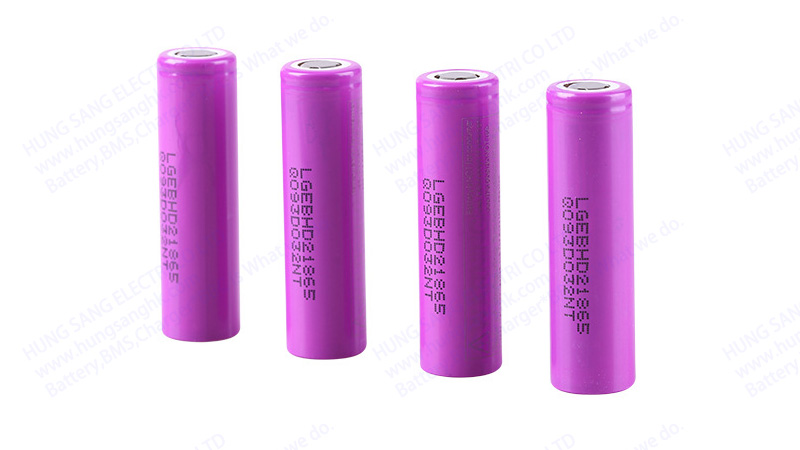

Lithium Ion 18650 Battery LGEBHD2 3.7V 2Ah 22A 7.4WH in Power Tools

Application

Lithium Ion rechargeable battery LG ICR18650-EBHD2 3.7V 2Ah 22A 7.4WH wildly used in Power Tool Remote Control Plane Vacuum Cleaner Fan Fishing Light Bluetooth speaker LED Light Beauty Instrument Water Mini-pumper Pet medical instruments Bicycle Pedicab Electric Cart
Simple Parameters



P/N: ION-LG1865-EBHD2-S1P1-7.4WH

Applications: Power Tools; E.V.  Type: Li-Ion; Super High Power   MFR: LG Chemical

No.

 Descriptions of Parameter

Data

1

Voltage Rated

DC 3.7V

2

Peak Voltage on charging

4.2V

3

Bottom Voltage on discharging

2.5V

4

Capacity Rated

2000Ah

5

Power Rated

7.4Wh

6

Constant Discharge Current max.

22A *11C5;

7

Constant Charge Current max.

3.35A *1.7C5

8

Top Shape

Flate

9

Dimensions:(Diameter * Height)

D.18mm; H.65mm

10

Weight

45g

11

Resistance

25mΩ

12

Packing

200cells per carton; G.W.9.8KG per carton.



Remarks:

C5:  IEC standards define the discharge rate of battery, whose capacity shall be discharged fully in 5 hours.  1C5 equal to same capacity usually; 10C5 means the discharge rate is 10 times than standard rate. 25C5 is the highest rate for 18650.

Best Matching Charger Recommended

Best Matching BMS Recommended

ION 1S 3.7V Battery Model List
