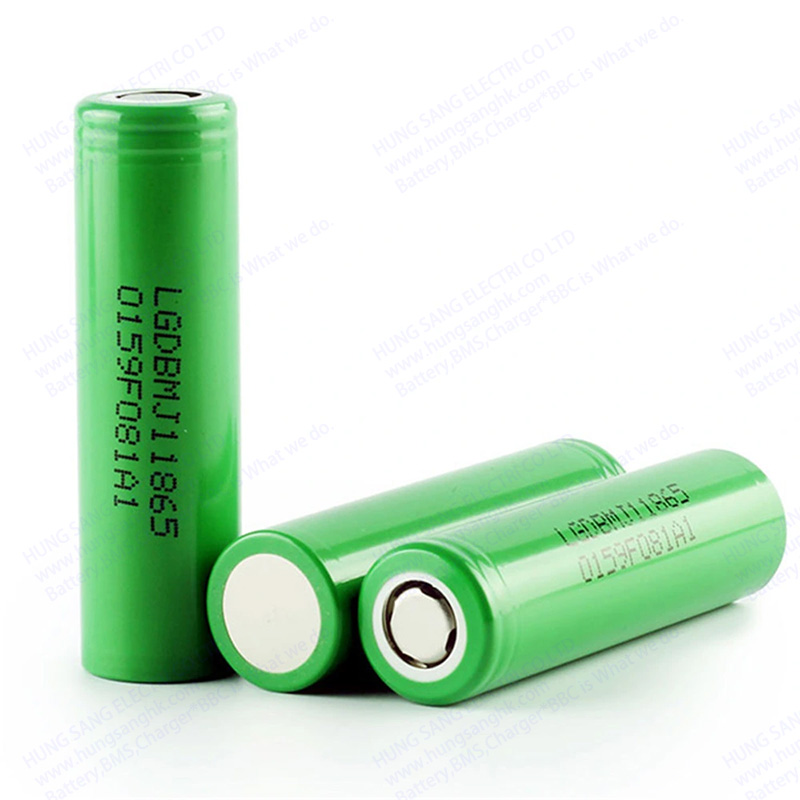

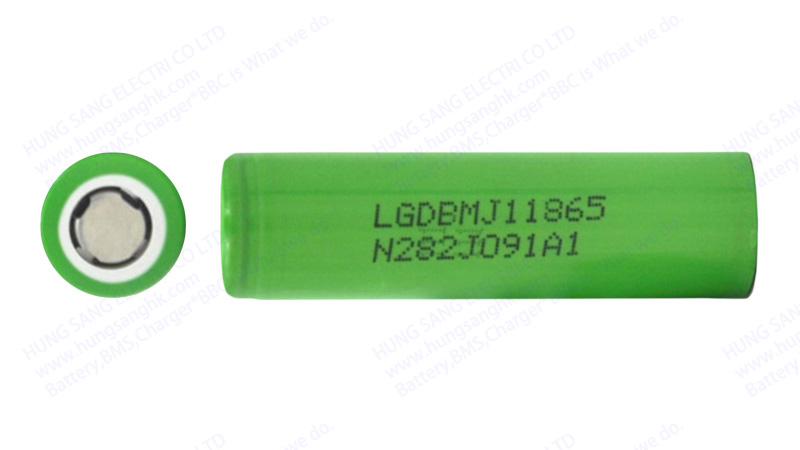

Lithium Ion 18650 Battery LGDBMJ11865 3.7V 3.5Ah 10A 12.72WH in Power Tool

Application

Lithium Ion rechargeable 18650 battery LGDBMJ11865 3.7V 3500mAh 10A 12.72WH wildly used in Power Tool Remote Control Plane Vacuum Cleaner Fan Fishing Light Bluetooth speaker LED Light Beauty Instrument Water Mini-pumper Pet medical instruments Bicycle Pedicab Electric Cart Electric Cigarette.
Simple Parameters



P/N: ION-LG1865-DBMJ1-S1P1-12.72WH

Applications: Power Tool           Type: Li-Ion, High Power      MFR: LG Chemical

No.

 Descriptions of Parameter

Data

1

Voltage Rated

DC 3.635V

2

Peak Voltage on charging

4.2V

3

Bottom Voltage on discharging

2.5V

4

Capacity Rated

3200mAh

5

Power Rated

12.72Wh

6

Constant Discharge Current max.

10A *3C5;

7

Constant Charge Current max.

3.4A  *1C5

8

Top Shape

Flate

9

Dimensions:(Diameter * Height)

D.18.4mm; H.65.0mm

10

Weight

49g

11

Resistance

40mΩ

12

Packing

200cells/carton; G.W. 9.9KG/CTN

13

Remarks

NO M.O.Q for new buyers.

OEM&ODM order always welcome

Longer Warranty available on request.

Delivery: 5-7 days

14

Remarks:

C5:  IEC standards define the discharge rate of battery, whose capacity shall be discharged fully in 5 hours.  1C5 equal to same capacity data; 10C5 means the discharge rate is 10 times than standard rate. 25C5 is the highest rate for 18650.
