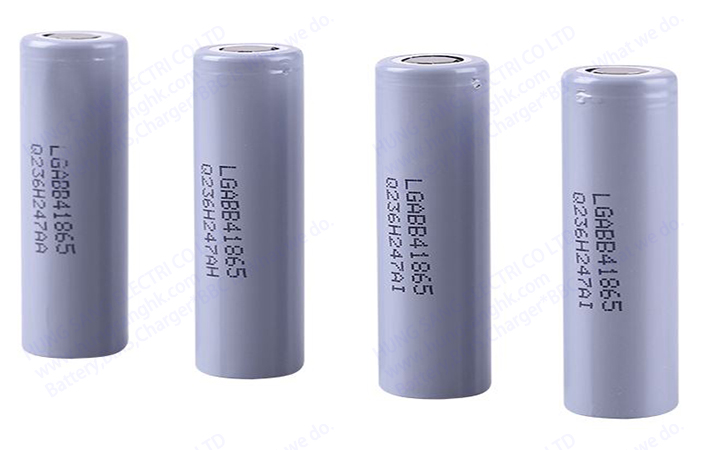

Lithium Ion 18650 Battery LGABG41865 3.7V 2.6Ah 9.6WH in Power Banks

Application

Lithium Ion rechargeable 18650 battery LGABG41865 3.7V 2600mAh 9.6WH wildly used in Power Tool Remote Control Plane Vacuum Cleaner Fan Fishing Light Bluetooth speaker LED Light Beauty Instrument Water Mini-pumper Pet medical instruments Bicycle Pedicab Electric Cart
Simple Parameters

P/N: ION-LG1865-ABG4-S1P1-9.6WH

Applications: Power Banks    Type: Li-Ion     MFR: LD Chemical

No.

 Descriptions of Parameter

Data

1

Voltage Rated

DC 3.7V

2

Peak Voltage on charging

4.2V

3

Bottom Voltage on discharging

2.5V

4

Capacity Rated

2600Ah

5

Power Rated

9.62Wh

6

Constant Discharge Current max.

1.25A *0.5C5;

7

Constant Charge Current max.

1.25A *0.5C5

8

Top Shape

Flate

9

Dimensions:(Diameter * Height)

D.18mm; H.65mm

10

Weight

48g

11

Resistance

50mΩ

12

Packing

200cells per carton; G.W.9.8KG per carton.

Remarks:

C5:  IEC standards define the discharge rate of battery, whose capacity shall be discharged fully in 5 hours.  1C5 equal to same capacity data; 10C5 means the discharge rate is 10 times than standard rate. 15C5 is the highest rate for 18650

Best Matching Charger Recommended

Best Matching BMS Recommended

ION 1S 3.7V Battery Model List
