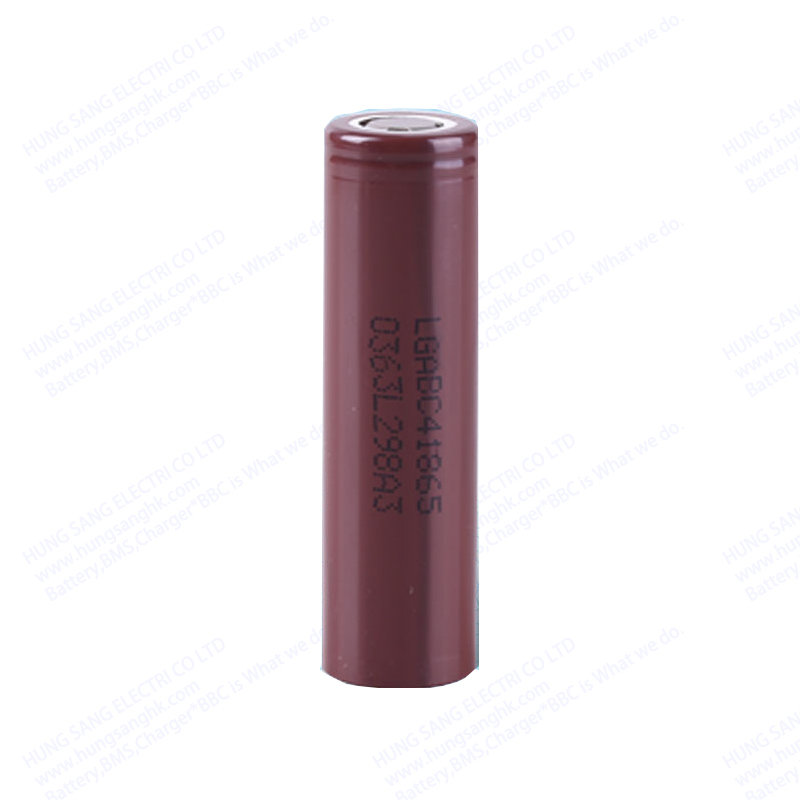

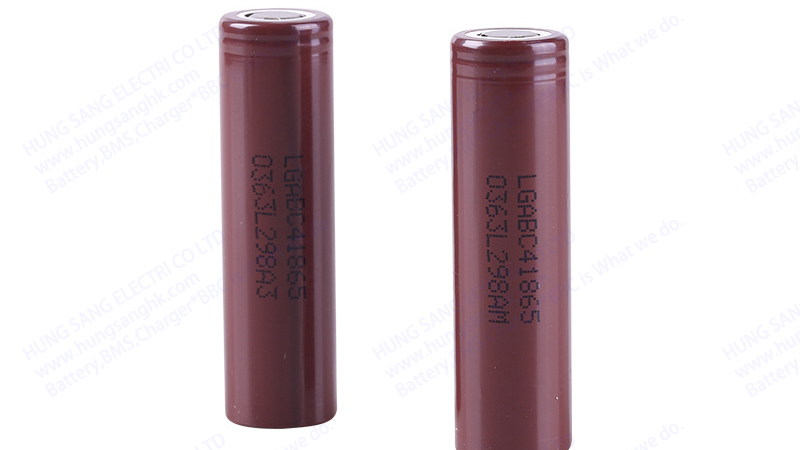

P/N: ION-LG1865-ABC4-S1P1-10.36WH |
||
|
Applications:
Power Bank Type: Li-Ion MFR: LD Chemical |
||
|
No. |
Descriptions of Parameter |
Data |
|
1 |
Voltage
Rated |
DC
3.7V |
|
2 |
Peak
Voltage on charging |
4.2V |
|
3 |
Bottom
Voltage on discharging |
2.5V |
|
4 |
Capacity
Rated |
2800Ah |
|
5 |
Power Rated |
10.36Wh |
|
6 |
Constant
Discharge Current max. |
1.4A
*0.5C5; |
|
7 |
Constant
Charge Current max. |
1.4A
*0.5C5 |
|
8 |
Top Shape |
Flate |
|
9 |
Dimensions:(Diameter
* Height) |
D.18.39mm; H.65.15mm |
|
10 |
Weight |
48g |
|
11 |
Resistance |
70mΩ |
|
12 |
Packing |
200cells
per carton; G.W.9.8KG per carton. |
Best Matching Charger Recommended
Best Matching BMS Recommended
ION 1S 3.7V Battery Model List
