LiFePO4 38120S (M size) Cell: 3.2V 10Ah (32Wh, 30A rate)

---

Parameters

Nominal Voltage	Average 3.2 – 3.3 V
Capacity	Nominal: 10000mAh (3.8V cut-off, 1C ) Minimum:  9800 mAh
Standard Charging current	5A recommended 30A Max..
Max.Discharging current	10Amp recommended 30 Amp (Max Continuous discharge rate) 100 Amp (< 30 sec Surge rate)
Operation Temperature	Charging: 0 – 45 oC (32 – 113 o F) Discharging: -20 – 65 oC (-4 – 149 o F)
Cycle Performance	> 2000 (80% of initial capacity at 0.2C rate, IEC standard) 2 times more than NiMH  and 10 time more than SLA

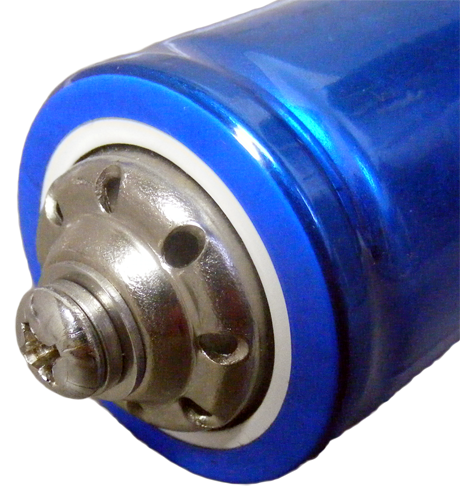

Dimensions(DxH)	38mm(1.5″) x 120mm(4.7″) Height 120mm(4.7″) is from end to end without 6mm male screw (blue color area) Terminal: 6 mm Female screw in both ends for connection.
Weight	12Oz (330 grams)
Notes	If you are building battery packs, please use matched cells and must use LiFePo4 protection circuit board.

---
