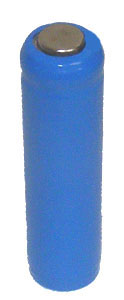

Li-Ion 14500 3.7V 800mAh Cylindrical

Li-ion 14500 Rechargeable Cell: 3.7V 800mAh

(2.77Wh, 1.0A rate, Flate Top, PCB Protected)

Main Applications: LED Torch

Rated Voltage 3.7 V
Rated Capacity 750mAh min.
Max.Charging Current 0.75A
Max.Discharging Current 1.0A (1.33C rate)
  • 14.0 ±0.5 mm x 55.0± 0.5mm
  • Note: Since this cell is a button top cell with PCB installed, the height is longer than a standard 14500 cell
Weight 1.0 Oz (28 grams)
Internal Impedance Internal Impedance: less or equal to 80 milli-ohm (with PTC)
Cycle Performance 80% of initial capacity at 300 cycles
Internal Protection
  • One Internal 3.7V PCB (1.0A limit) installed inside the battery to protect the battery from
    • Overcharge >4.30 ± 0.05V
    • Over discharge <2.4 ± 0.1V
    • Max currentover-drain protection > 1.0A
    • Short circuits
