Application

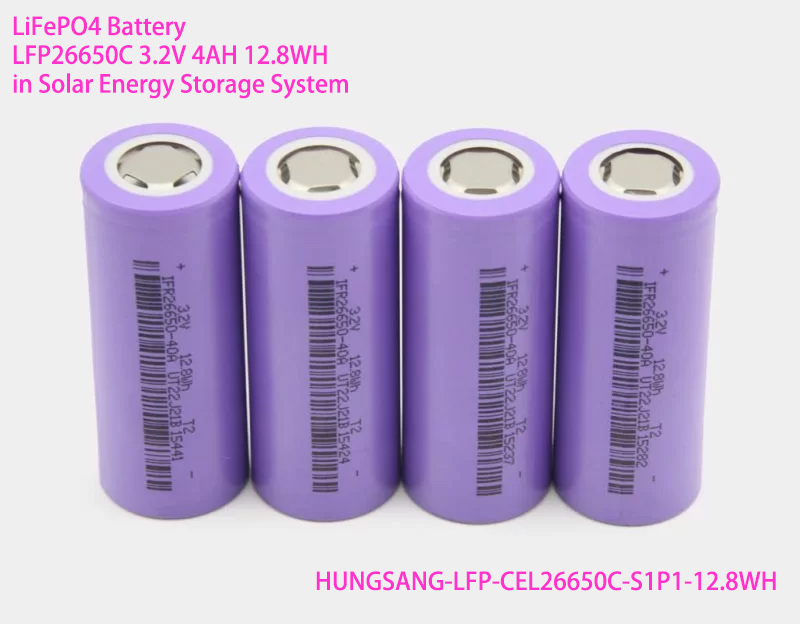

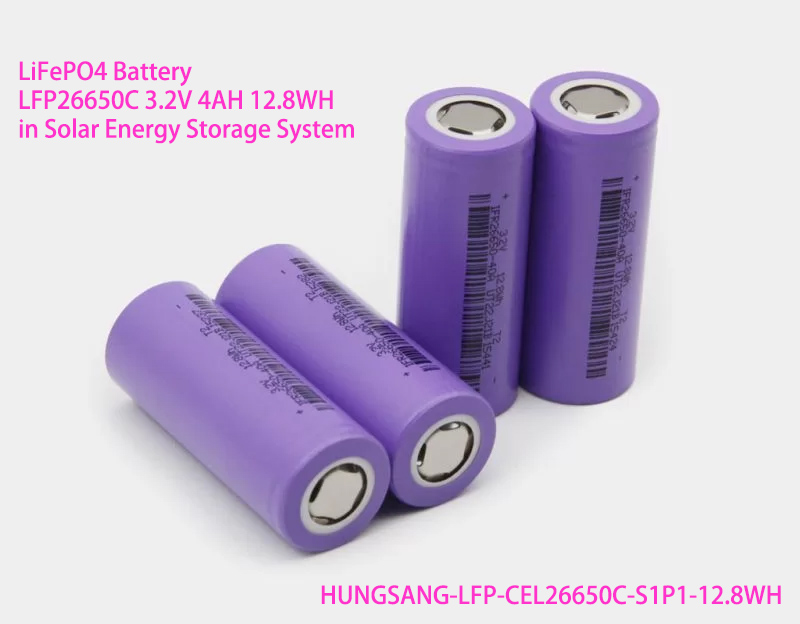

HUNGSANG-LFP-CEL26650C-S1P1-12.8WH |
||
Applications:
Electric Vehicle Cell Type: LiFePO4 |
||
No. |
Descriptions of Parameter |
Data |
1 |
Voltage
Rated |
DC
3.2V |
2 |
Capacity
Rated |
4Ah |
3 |
Power
Rated |
12Wh |
4 |
Constant
Discharge Current max. |
12A;
20A peak |
5 |
Constant Charge Current max. |
4A |
6 |
Charge Temperature Limited |
0°C -45°C/45-85%RH |
7 |
Discharge Temerature Limited |
-20°C -60 °C/45—85%RH |
8 |
Cycle
Life |
≥2000 times *IEC standard way |
9 |
Dimensions(Diameter
X Height) |
D
26mm H 65mm |
10 |
Weight |
88kg |
11 |
Resistance |
20mΩ |
12 |
Remarks |
NO
M.O.Q for new buyers. OEM&ODM
order always welcome Longer
Warranty available on request. Delivery:
5-7 days |
Best Matching Charger Recommended
Best Matching BMS Recommended
LFP 1S 3.2V Battery Model List
